Abstract
This is a pcb containing a matrix of 3 x 9 Cherry MX1 Buttons with each button holding a single color LED.
It is part of the
DIVA Lighting Console Hardware.
The intensity of the LEDs can be controlled individually and the outlines are choosen so that the boards can be placed side by side without any gap between the kaycaps.

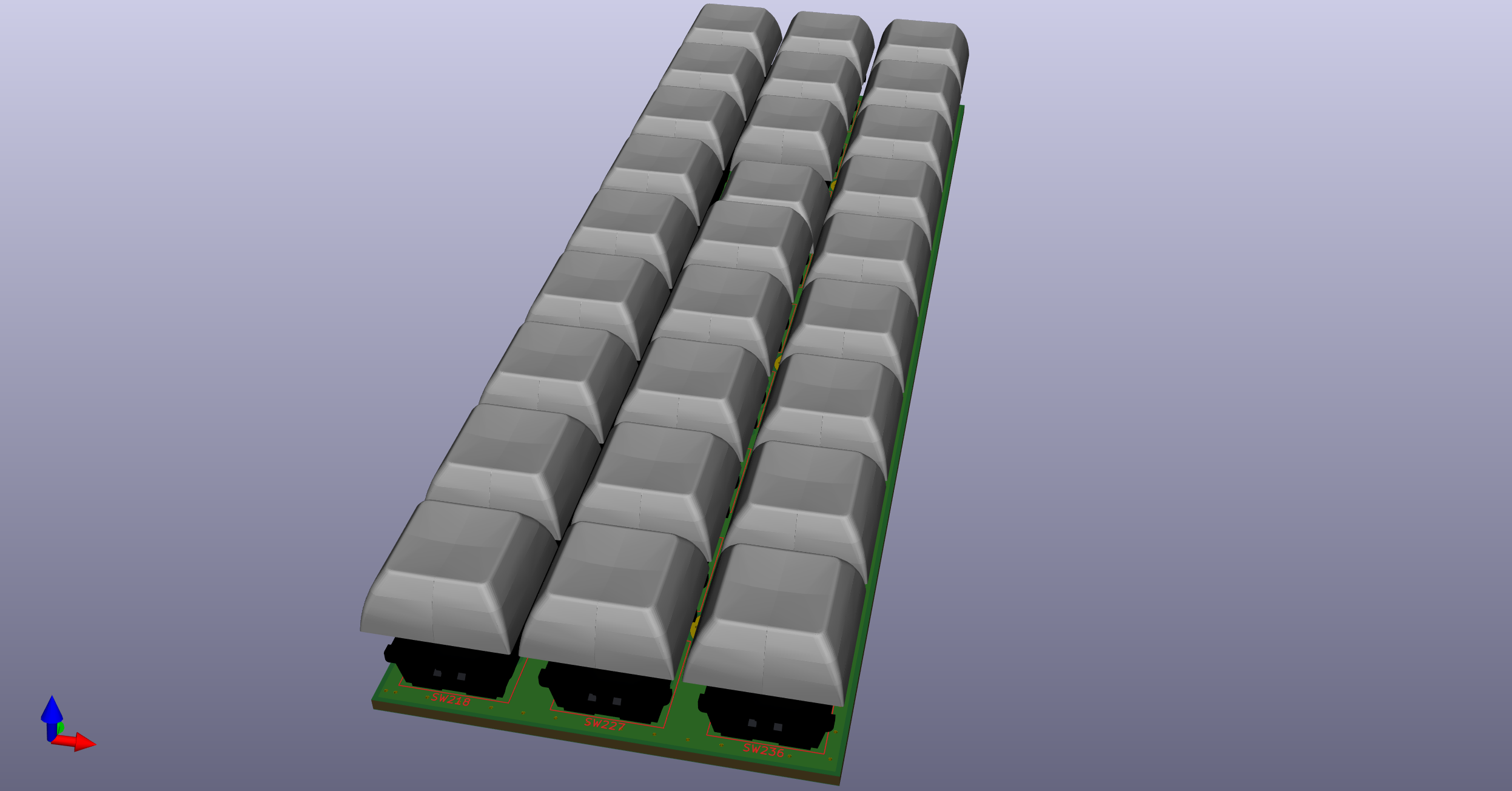

![[CommandKeyboard3x9 pcb top]](img/CommandKeyboard3x9-3d-top.png)

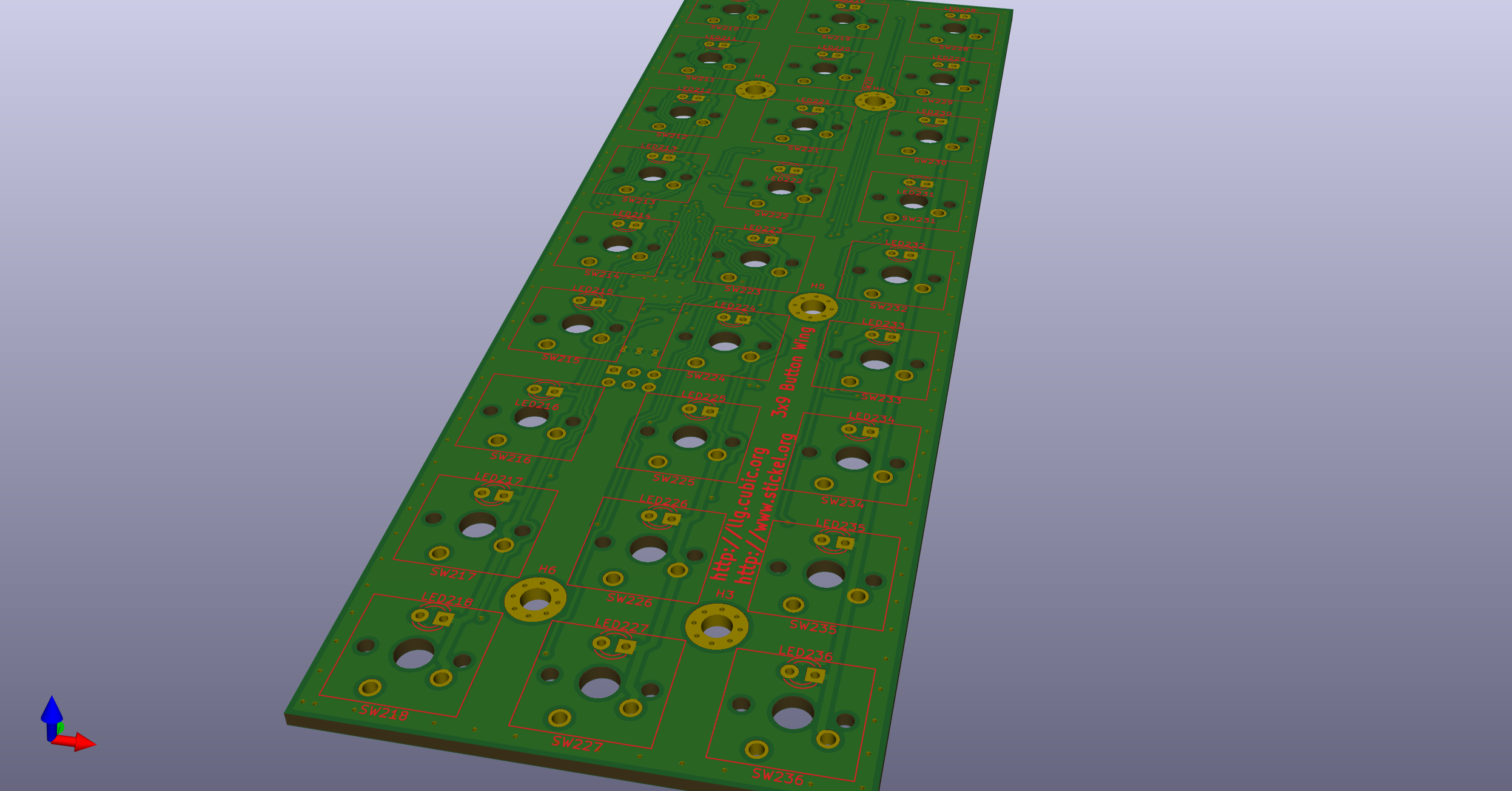

![[CommandKeyboard3x9 pcb top noparts]](img/CommandKeyboard3x9-3d-top-noparts.png)

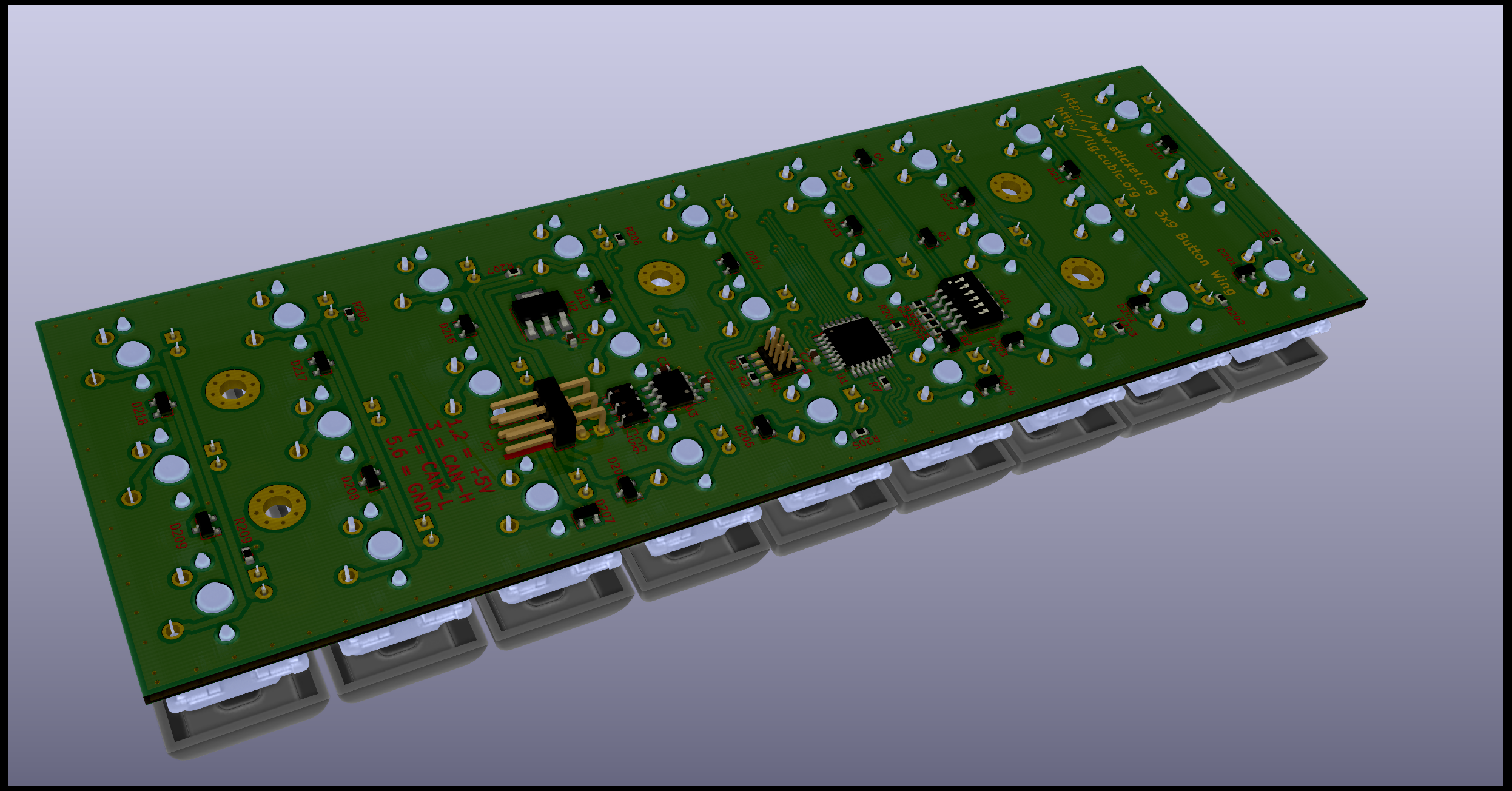

![[CommandKeyboard3x9 pcb bottom]](img/CommandKeyboard3x9-3d-bottom.png)
![[CommandKeyboard3x9 pcb]](CommandKeyboard3x9.png)
