DmxTestAdapter Board

Abstract

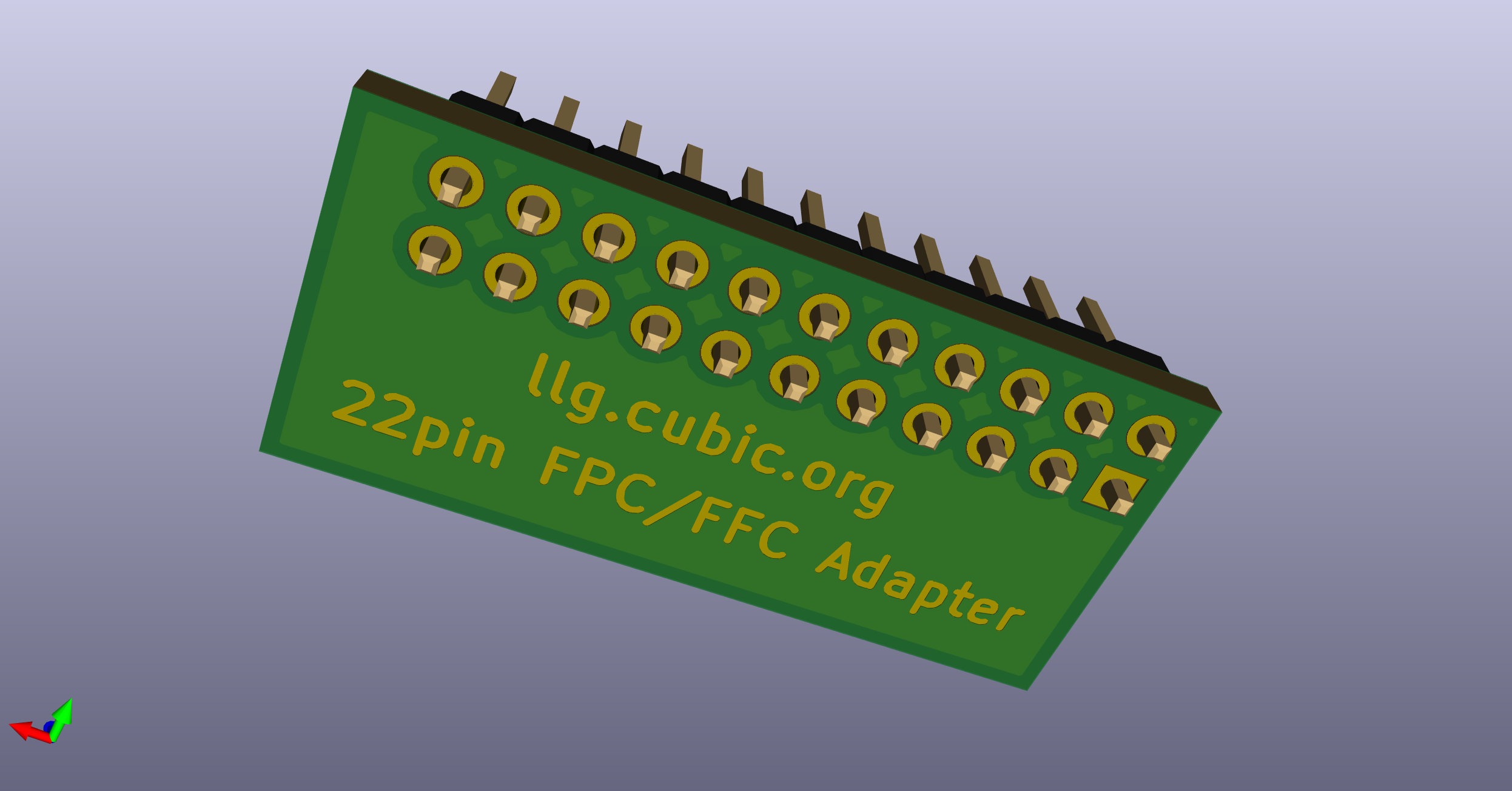

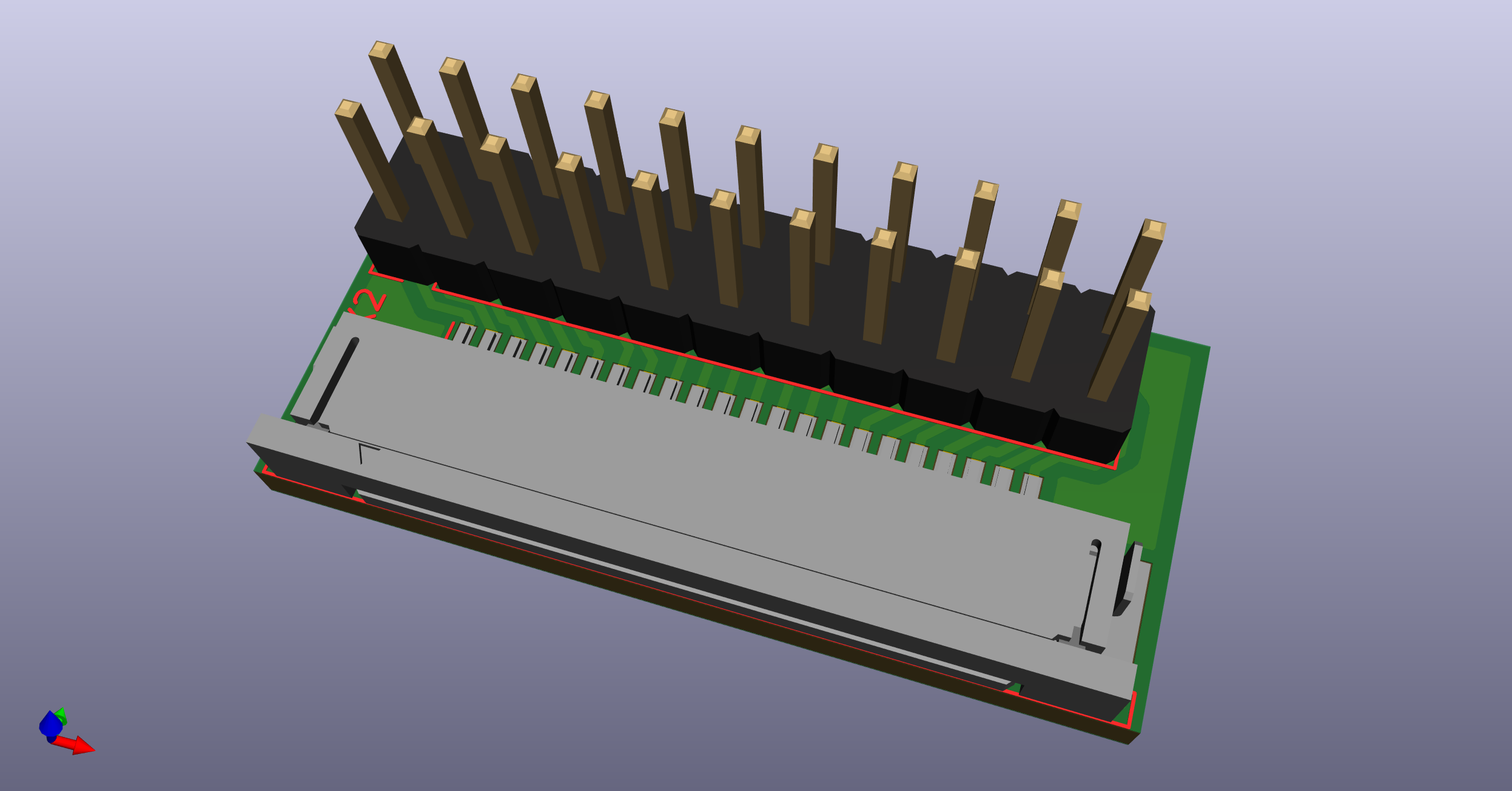

The adapter contains the FPC connector from the 4 port DmxIo board and a pin header or socket with a 2.54mm pin pitch in thruhole technology. You can also place a socket from the bottom of the pcb if you would like to have a pin header on your copper breadboard.
