DmxIo4 Board
Abstract
This board contains four isolated RS485 level shifters and XLR5 connectors. You only deal with 3.3V digital levels and do not need to care about the other stuff.
Details

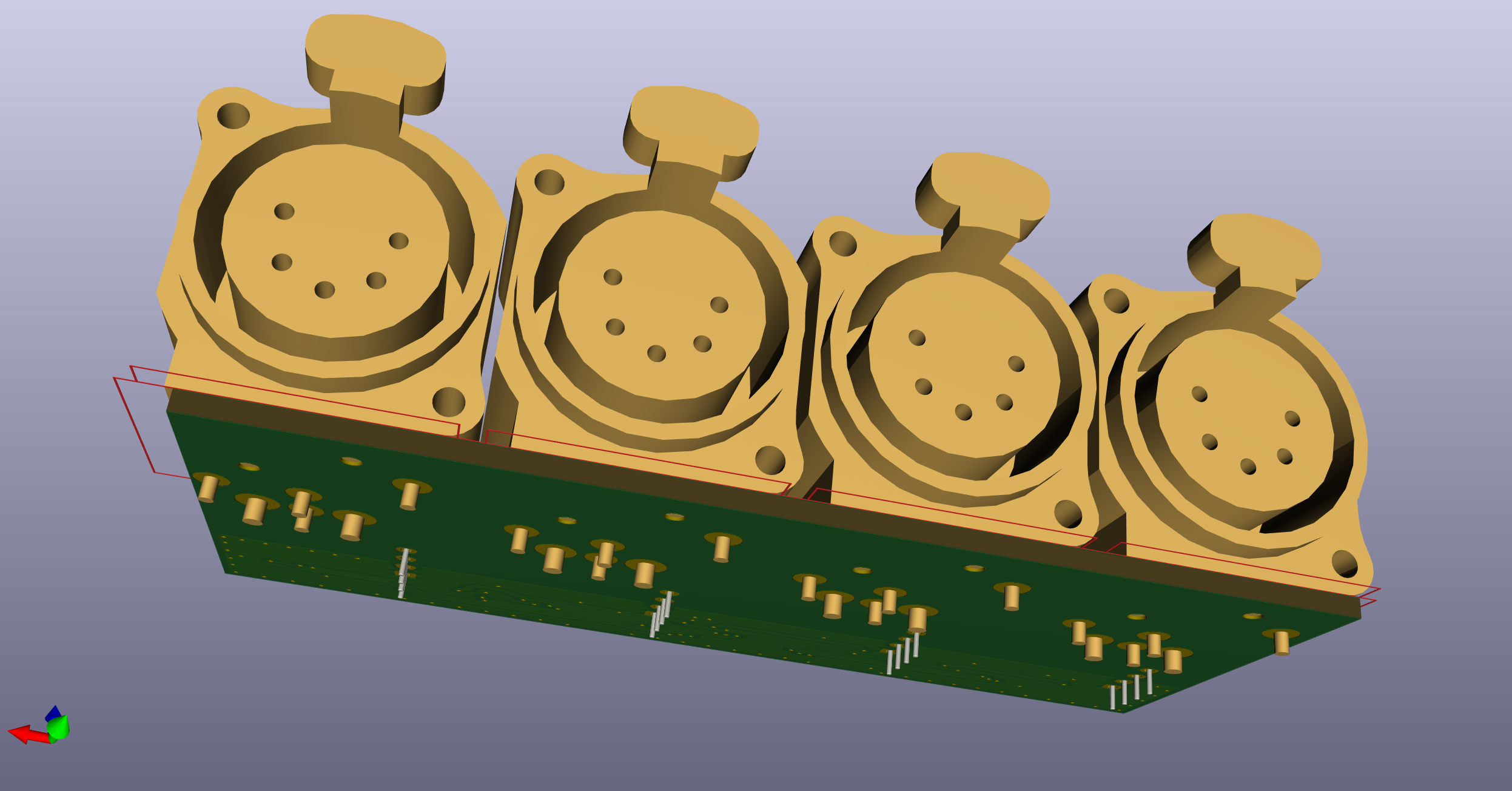

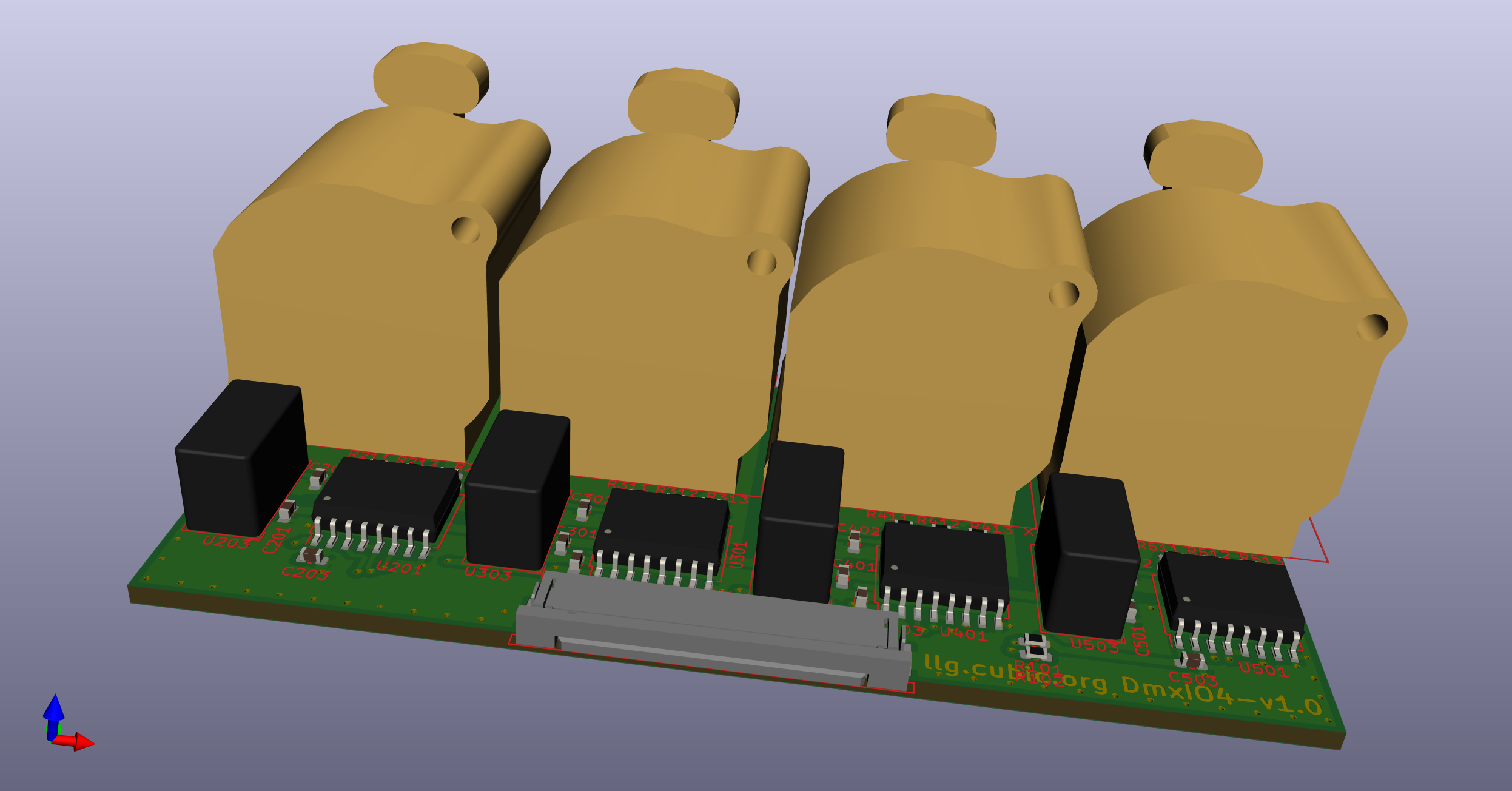

Here are some KiCad renderings of the board.
Files
Schematic as PDF
Last update: 2020-12-23
