DmxIo2 Board

Abstract

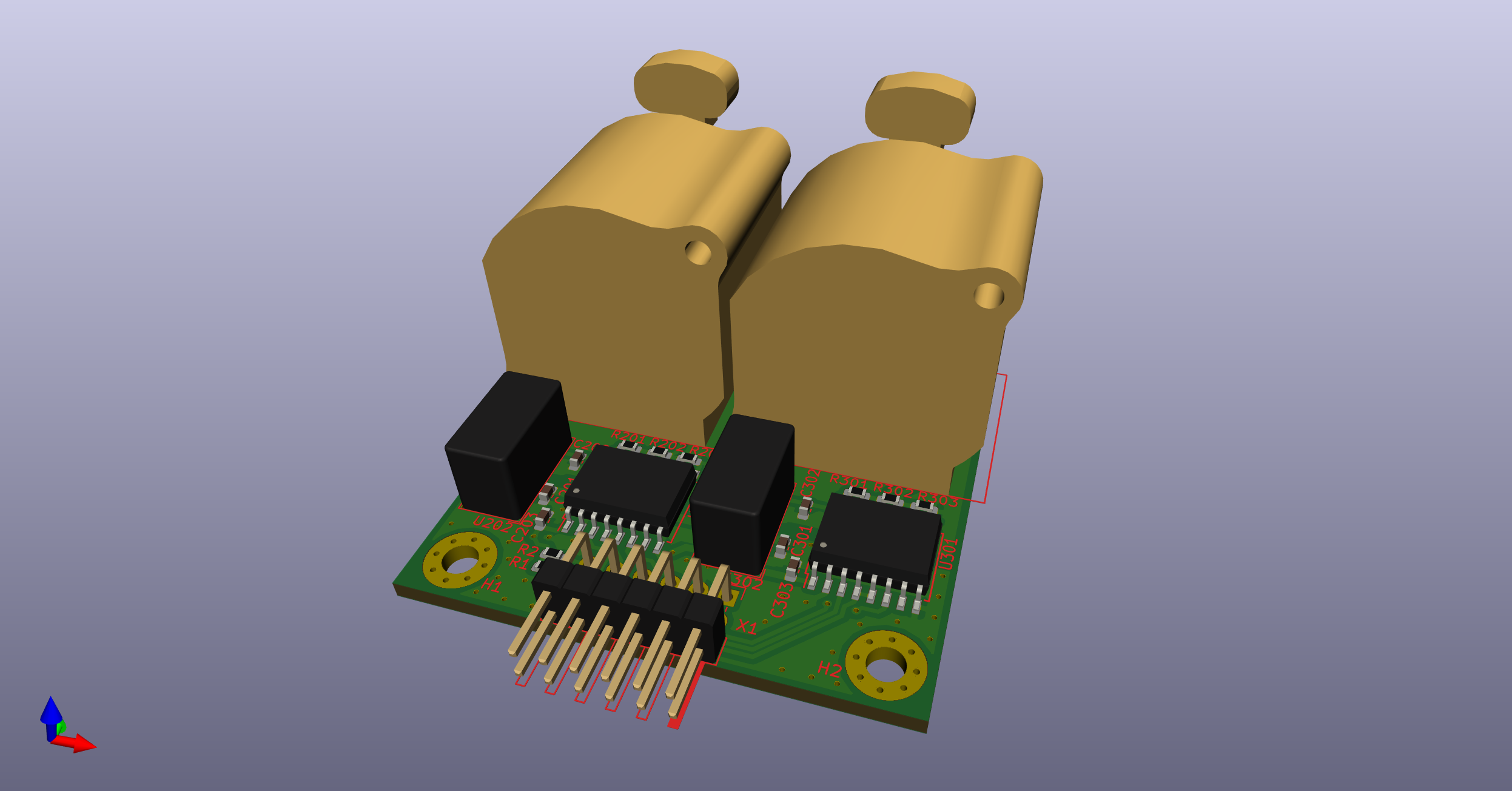

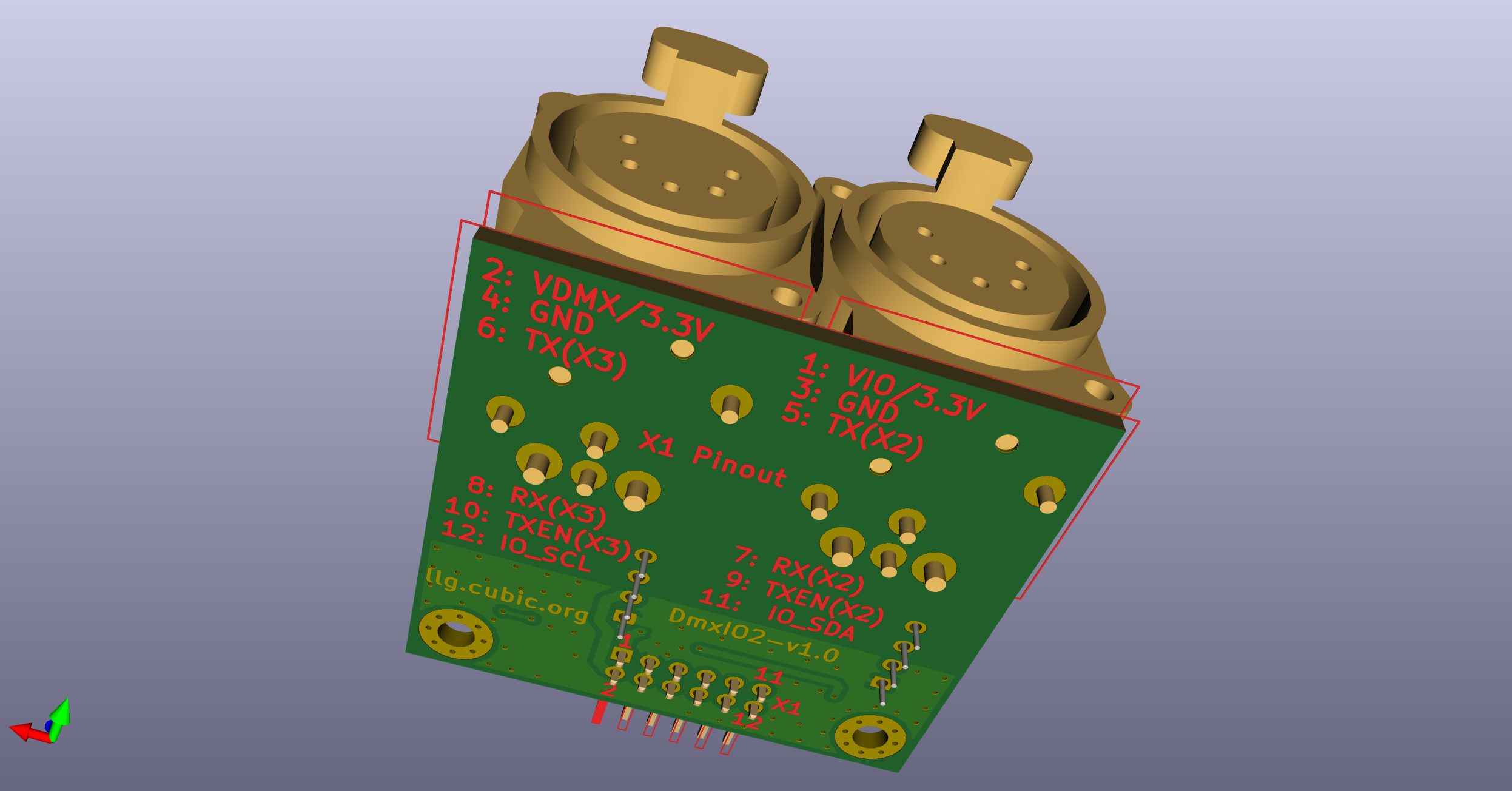

This board contains two isolated RS485 level shifters and XLR5 connectors. You only deal with 3.3V digital levels and do not need to care about the other stuff. This one uses a PMOD compatible connector layout.
