Button5x Board

[Button5x pcb]

Abstract

This board is usefull if you need a single row of fife buttons, for example as screen select buttons beside a display or for page selection right by your fader board. It contains one row of 5 Cherry MX1 buttons with a single color LED each. Each LED is individually dimmable.

Details

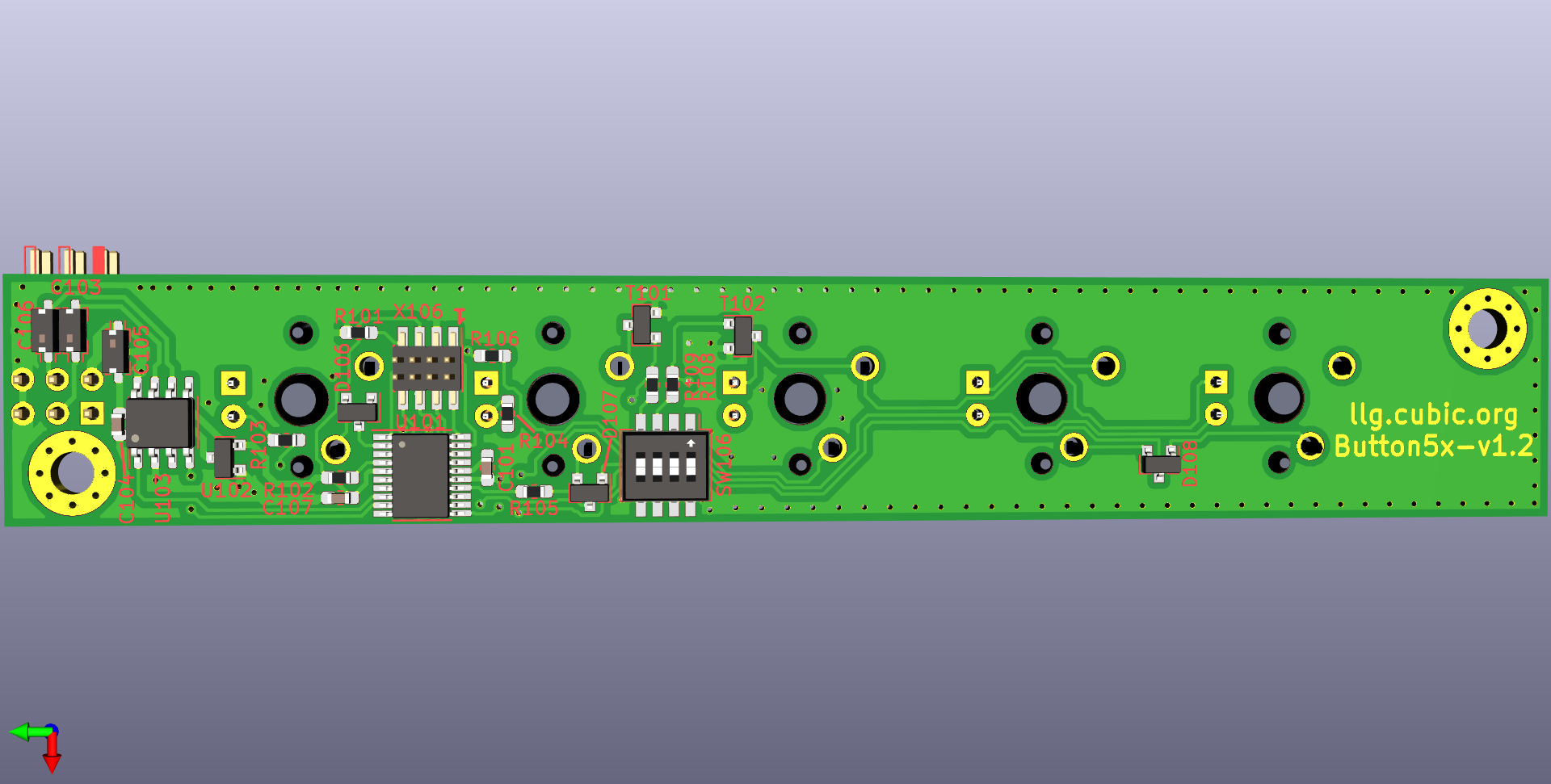

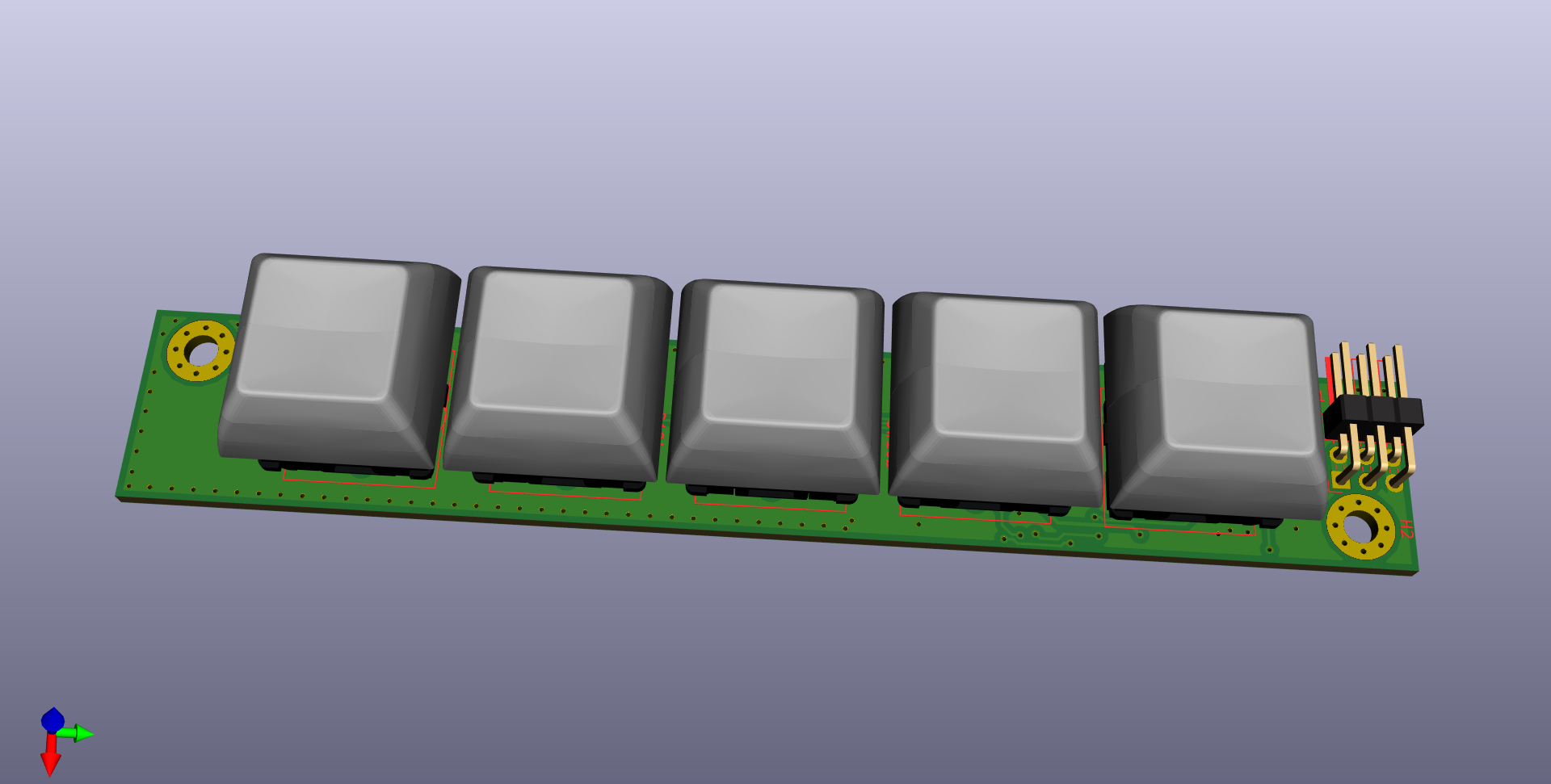

Here are some KiCad renderings of the board.

[Button5x pcb top] [Button5x pcb bottom]

Files


Last update: 2020-12-23
